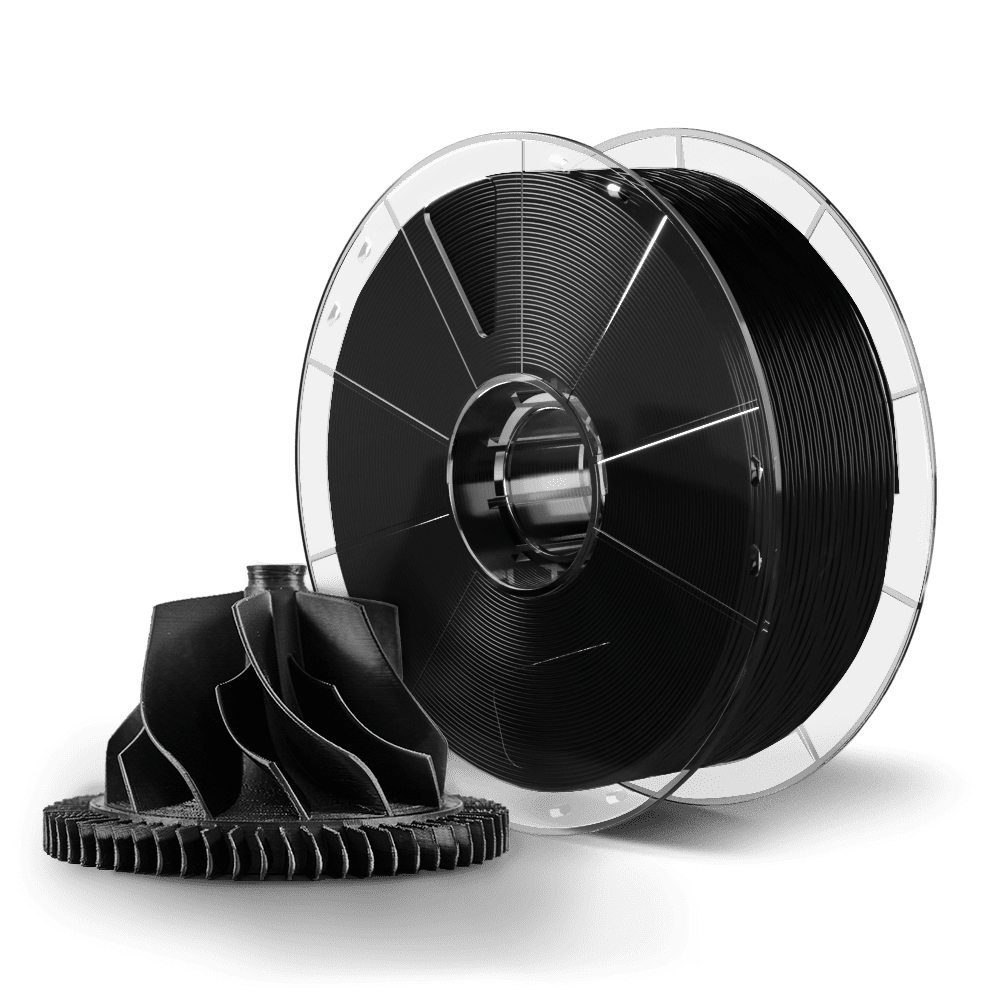

Mosaic ASA (Acrylonitrile Styrene Acrylate) is a durable, weather-resistant thermoplastic filament designed for outdoor and high-performance industrial applications. As a UV-stable alternative to ABS, Mosaic ASA is engineered for 3D printed parts exposed to sunlight, moisture, and harsh outdoor environments, without sacrificing strength or dimensional stability.
What is ASA?
Durable and easy to use. Explore ASA’s material specifications and key properties below.
Mechanical Properties
Mosaic ASA delivers strong, rigid performance with a tensile strength of 46.25 MPa and an elastic modulus of 2412 MPa, making it ideal for functional 3D printed parts, jigs and fixtures, and industrial components requiring strength, stiffness, and dimensional stability under load.
Thermal Properties
Mosaic ASA offers excellent heat resistance with a heat deflection temperature (HDT) of 99.8 °C, maintaining mechanical performance in warm, outdoor, or temperature-fluctuating industrial environments where lower-performance filaments like PLA or PETG fall short.
Chemical Properties
Strong UV and chemical resistance ensures long-term durability for outdoor and harsh-environment applications. Mosaic ASA is hydrolytically stable and well-suited for parts exposed to sunlight, moisture, or chemicals over extended periods, without fading, warping, or losing mechanical integrity.

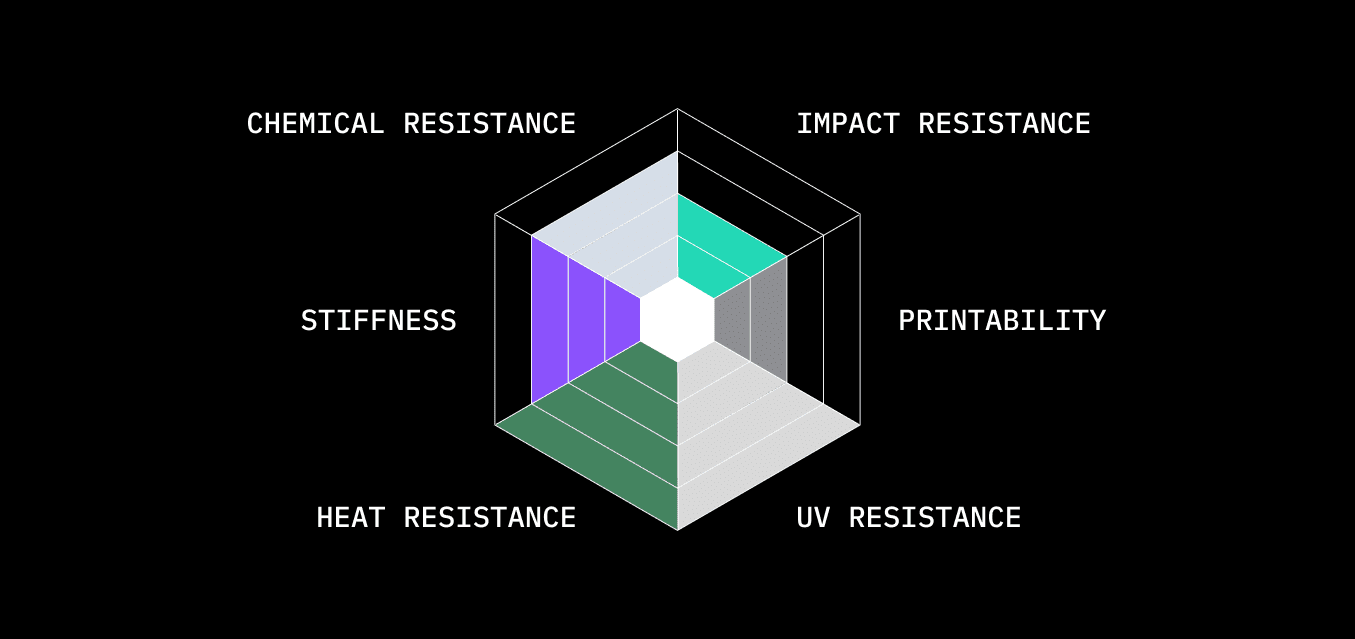

ASA Material Specifications
Durable and easy to use. Explore ASA’s material specifications and key properties below.
DOWNLOAD DATA SHEET
Available Colours
Black
White
Filament Specifications
| Parameter | Value |
| Diameter | 1.75 mm |
| Tolerance | ± 0.05 mm |
Printing Guidelines
| Slicer Profile | Available on canvas3d.io |
| Nozzle Temperature | 265°C |
| HEATED CHAMBER | Recommended for larger geometries |
| Build surface | Element Bed Type I, with glue stick |
| Special considerations | N/A |
Storage/Handling Considerations
| Hygroscopicity | Low |
| Drying Temperature | 70°C |
| Drying Time | 6 Hours |
Start Printing with Mosaic ASA
ASA in Action: Durable, Reliable, and Ready to Print
Materials Engineered for Performance
Explore Mosaic’s Line of High-Performance 3D Printing Materials.
Professional
Professional
High-performance 3D printing materials in bold colors for dependable, all-purpose use.
- Mosaic PLA
- Mosaic ASA
- Mosaic ABS
Flexible
Quickly iterate product designs using high-speed, multi-material printing that delivers functional, testable prototypes with minimal turnaround time.
Quickly iterate product designs using high-speed, multi-material printing that delivers functional, testable prototypes with minimal turnaround time.
- Validate designs faster with true-to-function parts
- Combine flexible and rigid materials in one print
- Reduce outsourcing and accelerate time to market
Light Industrial
Quickly iterate product designs using high-speed, multi-material printing that delivers functional, testable prototypes with minimal turnaround time.
- Validate designs faster with true-to-function parts
- Combine flexible and rigid materials in one print
- Reduce outsourcing and accelerate time to market
Industrial
Quickly iterate product designs using high-speed, multi-material printing that delivers functional, testable prototypes with minimal turnaround time.
- Validate designs faster with true-to-function parts
- Combine flexible and rigid materials in one print
- Reduce outsourcing and accelerate time to market
Array really automates 3D printing by making it a hands off procedure, I can send a print from my computer at home and not have to come into the office at 9pm – the parts are just sitting there ready for me the next day.
Connor Reddington, Avid (a Lubrizol Company)
Students at all levels of education should have access to an Array. It is essential if we’re encouraging STEM education, design engineering thinking, prototyping, iteration – students should have a reliable 3D printer to make parts in the volumes they need.
Cody Soska, Technical Specialist at IDeATe
The ability to develop and produce custom plastic parts at scale, on our factory floor, is great for our business and new client acquisition.
James McColl, Senior Program Manager Microart Services Inc.
Everything You Need to Know
For best results, print Mosaic ASA in an enclosed or heated chamber to reduce warping, especially on larger parts. Ensure proper bed prep for strong first-layer adhesion and maintain stable chamber conditions for optimal surface quality and dimensional accuracy. While ASA has low moisture sensitivity, pre-drying can improve extrusion consistency. Its UV stability and heat resistance make it ideal for outdoor applications.
Download the spec sheet for detailed print settings, mechanical properties, and recommended temperatures.
ASA is prone to warping and layer separation if printed in open air or without proper bed adhesion. Using a heated bed, enclosure, and controlled cooling significantly improves print quality and reduces defects.
Yes. ASA’s UV resistance and hydrolytic stability make it ideal for parts exposed to sunlight, moisture, or harsh weather. It maintains mechanical performance and color even after long-term outdoor exposure.
ASA is used for functional parts, industrial fixtures, outdoor signage, marine components, and any application requiring UV resistance, chemical tolerance, or long-term dimensional stability. It’s a preferred choice when durability in harsh conditions is essential.
