Mosaic Matrix is a high-performance carbon-fibre-reinforced nylon filament engineered for exceptional strength, stiffness, and dimensional stability. As a lightweight alternative to metal for structural and engineering parts, it delivers an outstanding strength-to-weight ratio, high thermal resistance, and excellent wear durability for aerospace, automotive, and robotics applications.
What is Mosaic Matrix?
Durable and easy to use. Explore Mosaic Matrix’s material specifications and key properties below.
Mechanical Properties
Matrix delivers 80.43 MPa tensile strength and a 4634 MPa modulus, making it one of Mosaic’s strongest and stiffest engineering materials. Its 7.01% elongation supports high structural loads, while a low density of 1.03 g/cc enhances strength-to-weight performance for lightweight parts in aerospace, automotive, and robotics engineering.
Thermal Properties
With an HDT of 101.6 °C, Matrix maintains mechanical integrity at elevated temperatures, performing well in under-hood automotive parts, aerospace components, robotics housings, and other demanding thermal environments where standard nylon or ABS would deform.
Chemical Properties
As a carbon-fibre-reinforced nylon composite, Matrix provides excellent wear and fatigue resistance with long-term dimensional stability. Carbon fibre reinforcement improves surface finish and dimensional accuracy compared to unreinforced nylon. Like all nylons, it’s hygroscopic and requires proper storage and drying for best performance.
Mosaic Matrix Material Specifications
Durable and easy to use. Explore Mosaic Matrix’s material specifications and key properties below.
DOWNLOAD DATA SHEET
Available Colours
Black
Filament Specifications
| Parameter | Value |
| Diameter | 1.75 mm |
| Tolerance | ± 0.05 mm |
Printing Guidelines
| Slicer Profile | Available on canvas3d.io |
| Nozzle Temperature | 280°C |
| HEATED CHAMBER | Recommended |
| Build surface | Element Bed Type I, with glue stick |
| Special considerations | N/A |
Storage/Handling Considerations
| Hygroscopicity | High |
| Drying Temperature | 100°C |
| Drying Time | 8 Hours |
Start Printing with Mosaic Matrix

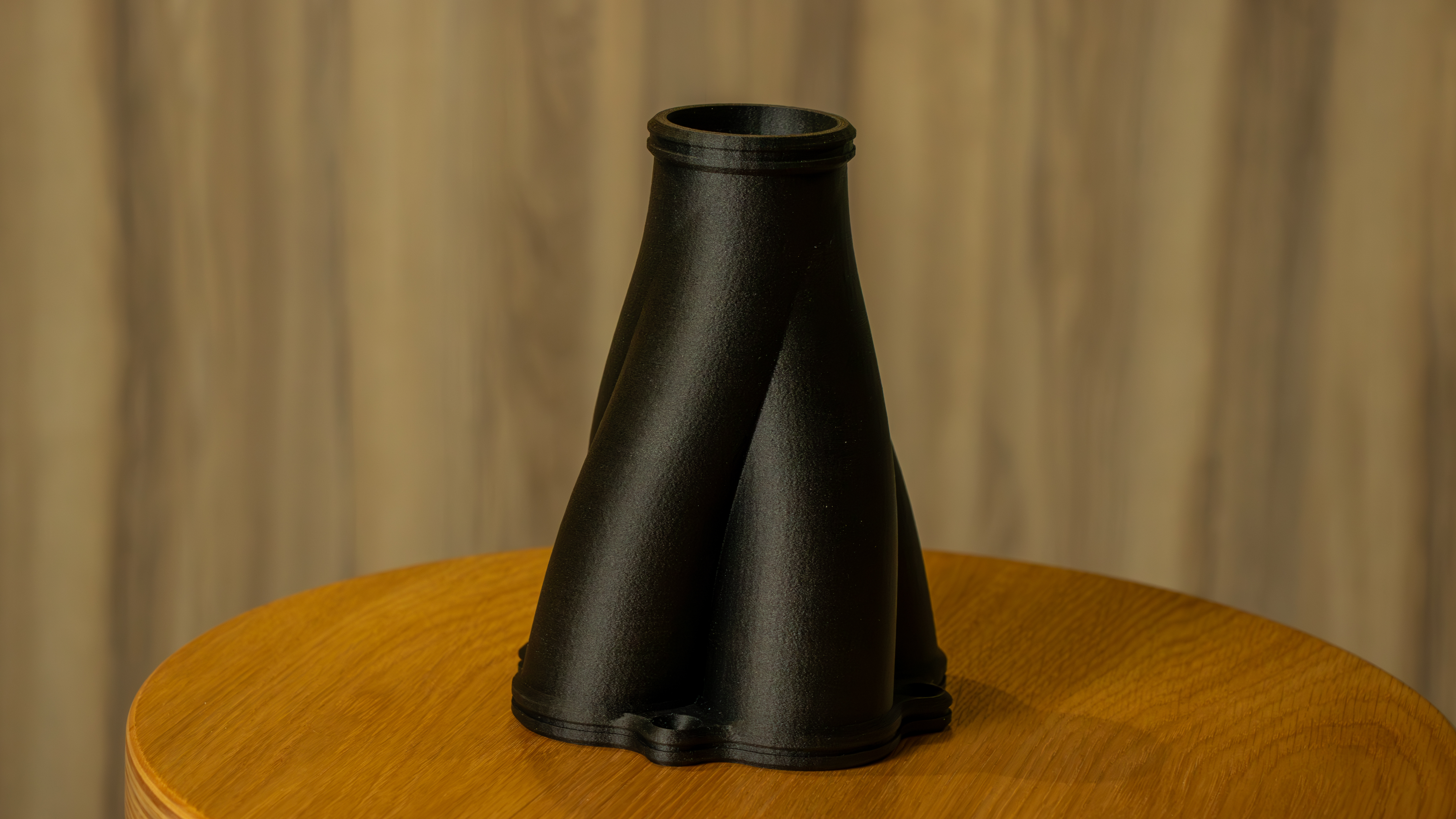

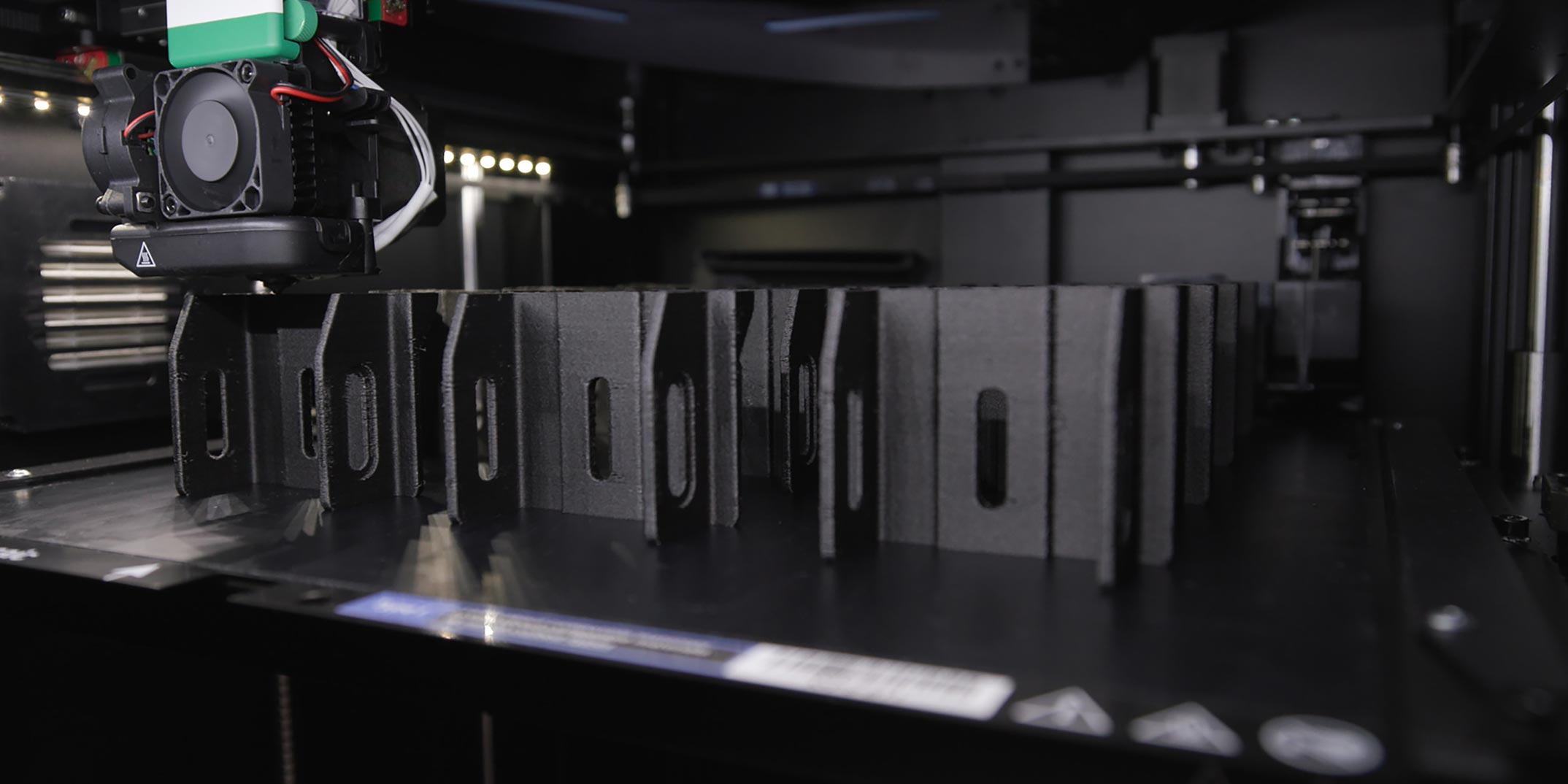

Mosaic Matrix in Action: Durable, Reliable, and Ready to Print
